Email Variables and Auto-Injection

Injects estimated delivery dates into PrestaShop transactional emails — either automatically (zero template edits required) or as named variables you can place anywhere in your templates.

Available since v3.9.20

Overview

Every time an order email is sent, the module captures the stored delivery dates for that order and makes them available as template variables. These variables work in any PrestaShop email template: order confirmation, shipped, order changed, bank wire awaiting payment, and any custom templates.

Two complementary mechanisms cover different needs:

• Variable injection — 9 named variables available in all PS emails, sourced from the ed_orders table. Works on PS 1.6+.
• Auto-injection — the module appends the full delivery block and JSON-LD microdata automatically after the email body for order_conf, shipped, and order_changed emails. PS 1.7+ only. No template editing required.

Both systems pull dates from the saved ed_orders record, not from a live recalculation. If no ED record exists for the order (e.g., a virtual product), variables are silently emptied.

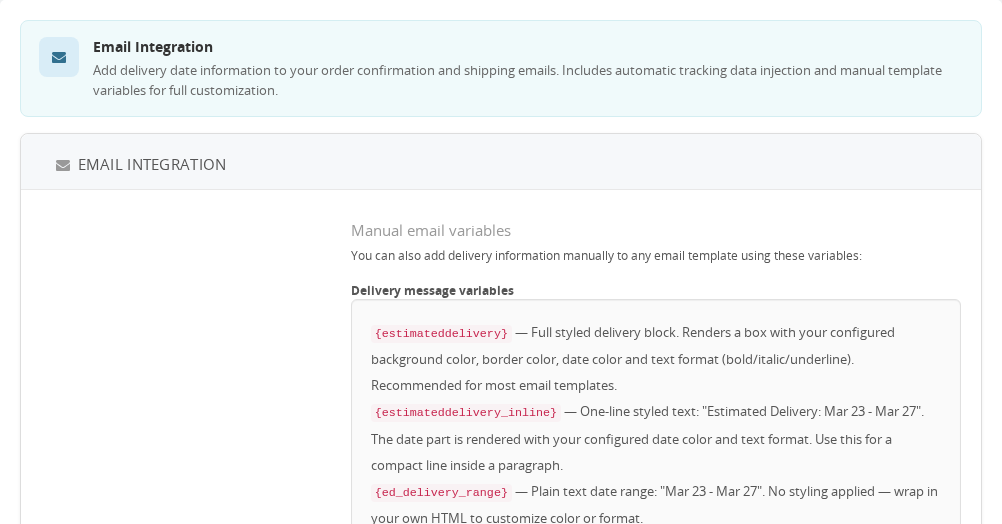

Configuration

1. Go to Modules > Module Manager > Estimated Delivery > Configure
2. Navigate to the Section 5 — Orders tab
3. Find the Emails — Order Related Emails subsection

Field	Values	Default	Description
Auto-inject delivery info into emails	On / Off	Off	Appends the delivery block and structured data automatically to order_conf, shipped, and order_changed emails. PS 1.7+ only.
Add check mark to email subject	On / Off	Off	Prepends a ✓ icon to the subject line of the delivery-update email sent when dates change.
Date format	Dropdown of locale-formatted examples	Format 3	Controls how dates are formatted in {estimateddelivery}, {ed_delivery_min}, {ed_delivery_max}, and {ed_delivery_range}. Does not affect the ISO variables.

When Auto-inject is enabled, you do not need to add {estimateddelivery} to your templates manually — the block is appended regardless of template content. Both methods can coexist without duplication because the hook appends after the template body, outside the layout table.

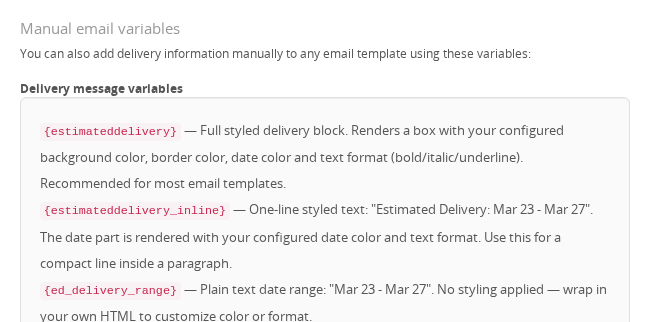

Email Template Variables

The following variables are injected into every PS email that has a resolvable order ID. They are available for use in any .html or .txt email template.

Variable	Description	Example output
{estimateddelivery}	Full styled HTML delivery block (matches the front-office box style)	HTML <div> with date and carrier info
{estimateddelivery_inline}	One-line plain text with "Estimated Delivery:" prefix	Estimated Delivery: Mar 23 - Mar 27
{ed_delivery_range}	Date range only, no prefix. Single date if min = max	Mar 23 - Mar 27 or Mar 23
{ed_delivery_min}	Formatted minimum delivery date (uses the configured date format)	Mar 23
{ed_delivery_max}	Formatted maximum delivery date (uses the configured date format)	Mar 27
{ed_delivery_min_iso}	Minimum date in ISO 8601 format — locale-independent	2026-03-23
{ed_delivery_max_iso}	Maximum date in ISO 8601 format — locale-independent	2026-03-27
{ed_carrier_name}	Name of the carrier assigned to the order	Chronopost
{ed_parcel_delivery}	Invisible <script type="application/ld+json"> block with ParcelDelivery structured data	JSON-LD tag (no visible output)

Recommended templates: Add {estimateddelivery} (or the inline/range variants) to the payment and shipped email templates. The admin Back Office lists the templates under Design > Email Templates.

{ed_delivery_min_iso} and {ed_delivery_max_iso} are captured before locale formatting and always use YYYY-MM-DD. Use these for integrations, webhooks, or automations that need a machine-readable date.

How It Works

Variable Injection (PS 1.6+)

Two hooks cover all PS versions:

• sendMailAlterTemplateVars — PS 1.6 hook, modifies template_vars in-place
• actionGetExtraMailTemplateVars — PS 1.7+ hook, adds to extra_template_vars

Both hooks call the same internal logic: locate the order from the template vars (via {id_order} or {order_name}), load the ed_orders record, format the dates, render the Smarty templates, and return the full variable set.

If the order cannot be located, all 9 variables are injected as empty strings so templates never display a broken {variable_name} placeholder.

Auto-Injection (PS 1.7+ only)

When Auto-inject is enabled, the actionEmailAddAfterContent hook fires for every outgoing email. It:

1. Checks whether the template is one of: order_conf, shipped, order_changed
2. Finds the order ID from the template vars
3. Calls the same variable-resolution logic as the variable injection path
4. Appends {estimateddelivery} HTML + the JSON-LD <script> tag directly after templateHtml

The appended block is outside the email layout table, which avoids breaking table-based email designs.

JSON-LD Microdata

{ed_parcel_delivery} emits a ParcelDelivery object conforming to schema.org. When recognized by Gmail or Outlook, this can show package delivery information in the mail client UI.

The structured data includes:

• Delivery address (name, street, city, postal code, country)
• expectedArrivalFrom / expectedArrivalUntil — always in ISO 8601, not locale-formatted
• Carrier name and organization
• All products in the order (name, URL, SKU, brand, image, color if available)
• Tracking number and tracking URL (order history page) when available
• Order number and shop name

Usage Examples

Example: Adding delivery dates to the order confirmation email

Open mails/en/order_conf.html in your theme. Find a suitable location — typically after the carrier information row — and add:

{estimateddelivery}

The full styled delivery box appears with the configured color scheme and date format.

---

Example: Adding a one-liner to a plain-text template

In mails/en/order_conf.txt, add a line after the order summary:

{estimateddelivery_inline}

Output: Estimated Delivery: Mar 23 - Mar 27

---

Example: Using ISO dates in a webhook or third-party automation

If your email platform (e.g., Klaviyo, Mailchimp) accepts raw template variables, use:

{ed_delivery_min_iso}
{ed_delivery_max_iso}

These always produce YYYY-MM-DD regardless of the shop language or date format setting.

---

Example: Zero-configuration setup with auto-injection

Enable Auto-inject delivery info into emails in Section 5 and save. The delivery block is appended to all order_conf, shipped, and order_changed emails automatically, with no template editing needed. Works immediately after enabling.

Important Notes

• Auto-injection is PS 1.7+ only. On PS 1.6, use the template variables manually.
• Variables require a saved ED order record. The module stores delivery dates in ed_orders when the order is validated. If no record exists (virtual products, orders placed before the module was installed), all variables return empty strings — no errors or placeholders.
• The {delivery_min} and {delivery_max} variables (without the ed_ prefix) are used internally by the delivery-update notification email (ed_update template) that is sent when dates change. They are not part of the standard variable injection path for order confirmation emails.
• Payment-pending notice: When an order uses a payment method that requires manual validation (bank wire, check), the styled delivery block includes an automatic disclaimer that the date may change until payment is confirmed.
• Multi-shop: ED_EMAIL_AUTO_INJECT, ED_EMAIL_ICON, and ED_EMAIL_DATE_FORMAT are per-shop settings.
• Individual dates per product: When the module is configured to track per-product delivery dates (ED_DATES_BY_PRODUCT), the {estimateddelivery} block groups products by delivery date and lists them accordingly.

Troubleshooting

Problem	Solution
Variables appear literally as {estimateddelivery} in the email	The hook is not registered. Go to Modules > Module Manager > Estimated Delivery > check that the module is installed correctly.
Variables are empty in the email	The order has no ED record. Check ed_orders for the order ID. This is expected for virtual products or orders placed before module activation.
Auto-inject shows the block but dates are wrong	The ed_orders record has stale dates. If the order was placed long ago, the stored dates reflect the original calculation.
Auto-inject is enabled but nothing appears	This feature requires PS 1.7+. On PS 1.6, the actionEmailAddAfterContent hook does not exist. Use the template variables manually instead.
{ed_parcel_delivery} renders visible text in some email clients	Some clients display inline script tags. This is an email client limitation. Place {ed_parcel_delivery} last in the template to minimize visual impact.
Delivery block color does not match the front-office color	The email block uses the same ed_class color config, but email clients strip many CSS rules. Inline styles are applied as a fallback.

Technical Reference

• Hooks used:

  • sendMailAlterTemplateVars — PS 1.6+; modifies $params['template_vars'] to inject variables
  • actionGetExtraMailTemplateVars — PS 1.7+; adds to $params['extra_template_vars']
  • actionEmailAddAfterContent — PS 1.7+; appends HTML to $params['templateHtml'] for order_conf, shipped, order_changed

• Configuration keys:

  • ED_EMAIL_AUTO_INJECT — int (0/1), per-shop; enables the after-content hook
  • ED_EMAIL_ICON — int (0/1), per-shop; prepends ✓ to the delivery-update email subject
  • ED_EMAIL_DATE_FORMAT — int (index 1–N), per-shop; controls locale date formatting for email variables (default: 3)

• Database tables:

  • ed_orders — source of delivery_min, delivery_max, individual_dates, is_definitive, undefined_delivery used for all email variable resolution

• Key files:

  • estimateddelivery.php — hookSendMailAlterTemplateVars(), hookActionGetExtraMailTemplateVars(), hookActionEmailAddAfterContent(), addVariablesToEmails(), getExtraVarsFromOrderId()
  • views/templates/front/emails/ed-email-template.tpl — Smarty template rendered into {estimateddelivery}
  • views/templates/front/emails/parcel-microdata.tpl — JSON-LD schema.org block rendered into {ed_parcel_delivery}
  • tests/phpunit/EmailVariablesTest.php — full PHPUnit test suite for variable values, ISO dates, microdata, and auto-injection behavior

Related Features

• Cache System — delivery date calculations are cached; email variables always read from the ed_orders snapshot, not the live cache
